Special Shaped Bricks
Special shaped bricks are manufactured from standard bricks, using a cut and bonded method. This process is carried out using diamond tipped blades and clean, fresh water. The bonding process takes place using a two part epoxy resign, specifically developed for this task.
Special shaped bricks can be delivered back to site in days rather than weeks. Ordering non-standard angles? Email us a drawing and we will email back an Isometric diagram for your approval.

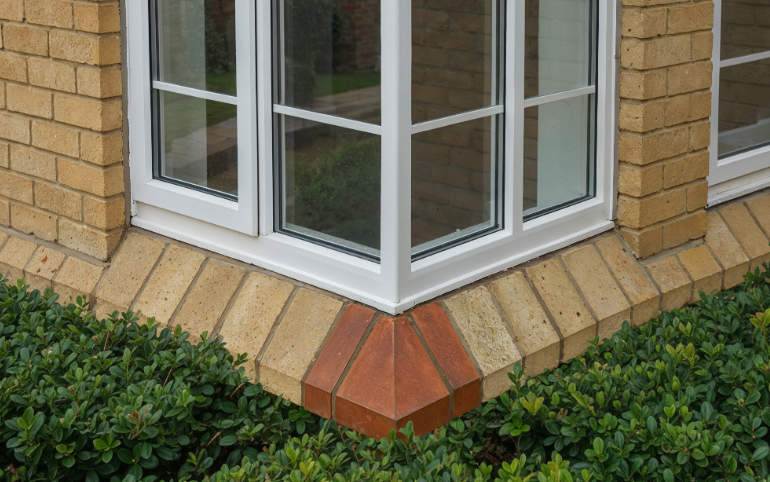

SILL BRICKS (IC)

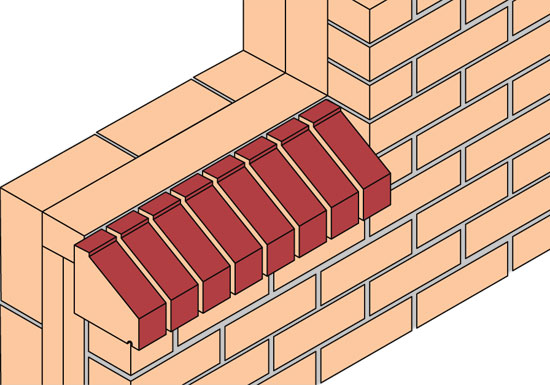

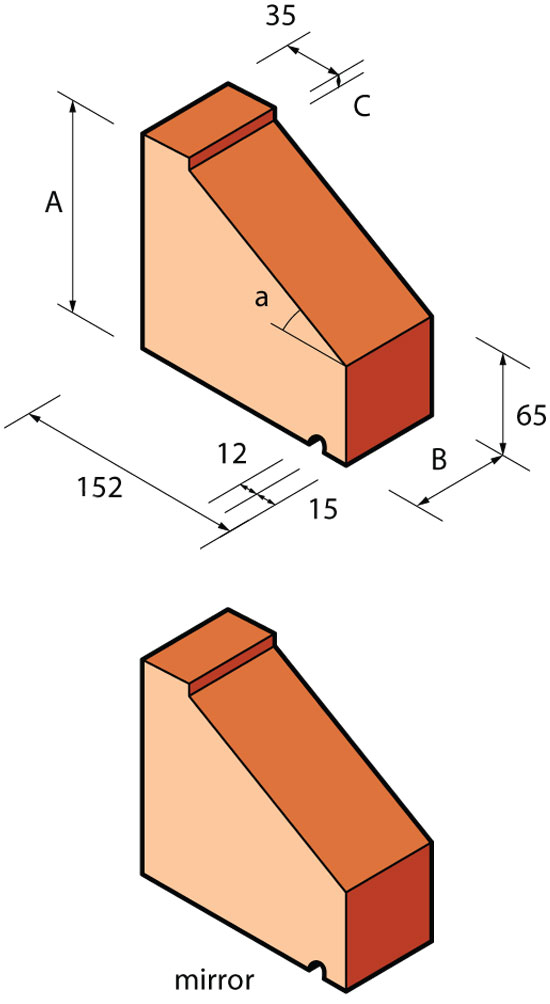

IC.1 OVERHANGING ANGLED SILL
| Type No. | A | B | C | a |
|---|---|---|---|---|
| I.C.1.1 | 140 | 65 | 7.5 | 30° |
| I.C.1.2 | 140 | 102 | 7.5 | 30° |
| I.C.1.3 | 140 | 215 | 7.5 | 30° |
| I.C.1.4 | 215 | 65 | 10 | 50° |
| I.C.1.5 | 215 | 102 | 10 | 50° |
| I.C.1.6 | 215 | 215 | 10 | 50° |

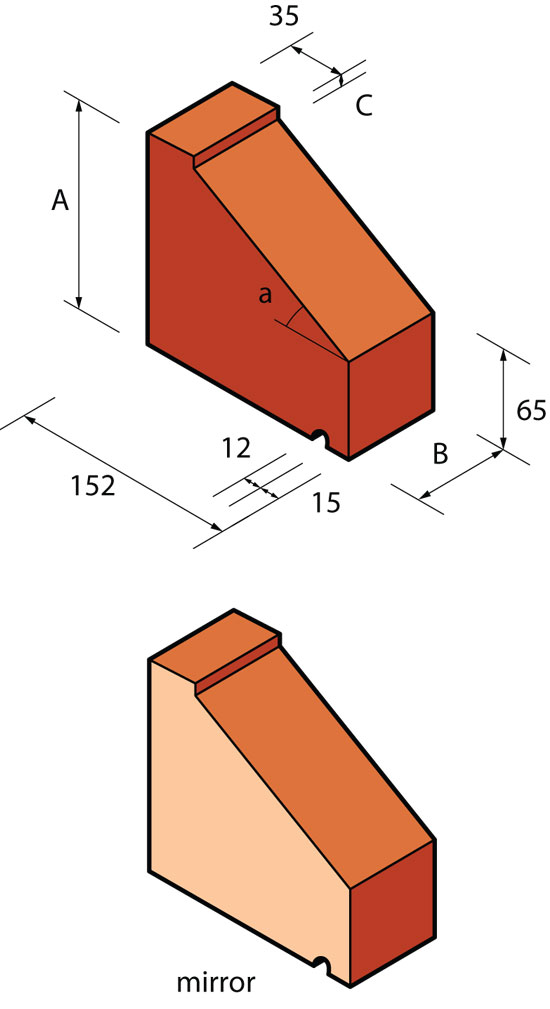

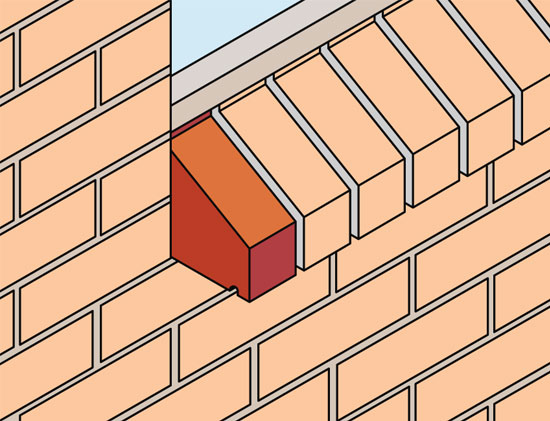

IC.2 OVERHANGING ANGLED SILL (LEFT AND RIGHT HAND)
| Type No. | A | B | C | a |
|---|---|---|---|---|
| I.C.2.1 | 140 | 65 | 7.5 | 30° |
| I.C.2.2 | 140 | 102 | 7.5 | 30° |
| I.C.2.3 | 140 | 215 | 7.5 | 30° |
| I.C.2.4 | 215 | 65 | 10 | 50° |
| I.C.2.5 | 215 | 102 | 10 | 50° |
| I.C.2.6 | 215 | 215 | 10 | 50° |

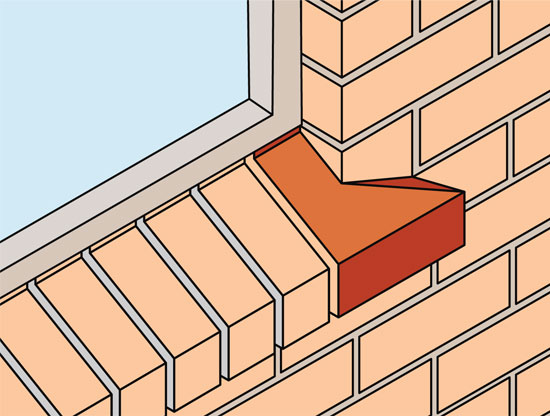

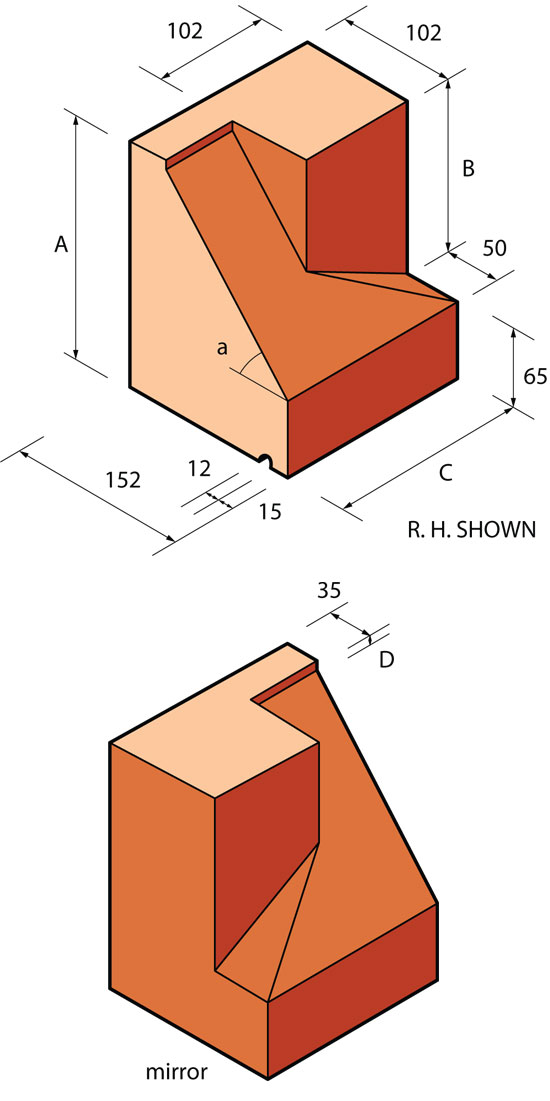

IC.3 OVERHANGING ANGLED SILL STOOLED END (LEFT AND RIGHT HAND)
| Type No. | A | B | C | a |
|---|---|---|---|---|
| I.C.3.1 | 140 | 75 | 177 | 30° |
| I.C.3.2 | 215 | 150 | 177 | 50° |
| I.C.3.3 | 140 | 75 | 215 | 30° |
| I.C.3.4 | 215 | 150 | 215 | 50° |

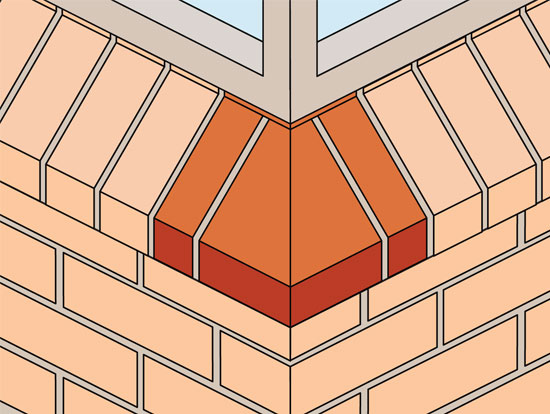

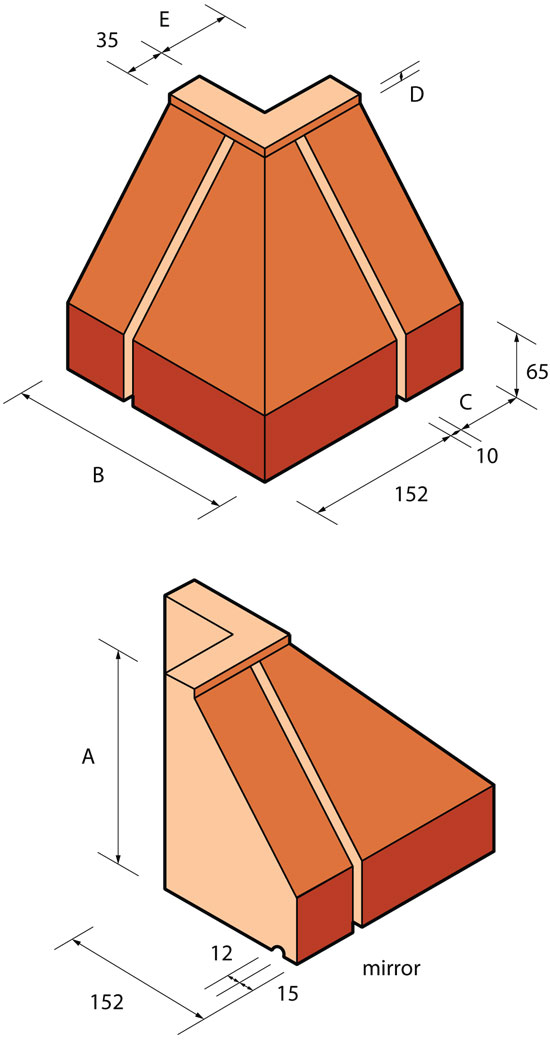

IC.4 OVERHANGING ANGLED SILL EXTERNAL RETURN
| Type No. | A | B | C | D | E | a |
|---|---|---|---|---|---|---|
| I.C.4.1 | 140 | 227 | 65 | 7.5 | 75 | 30° |
| I.C.4.2 | 215 | 227 | 65 | 10 | 75 | 50° |
| I.C.4.3 | 140 | 264 | 102 | 7.5 | 112 | 30° |
| I.C.4.4 | 215 | 264 | 102 | 10 | 112 | 50° |

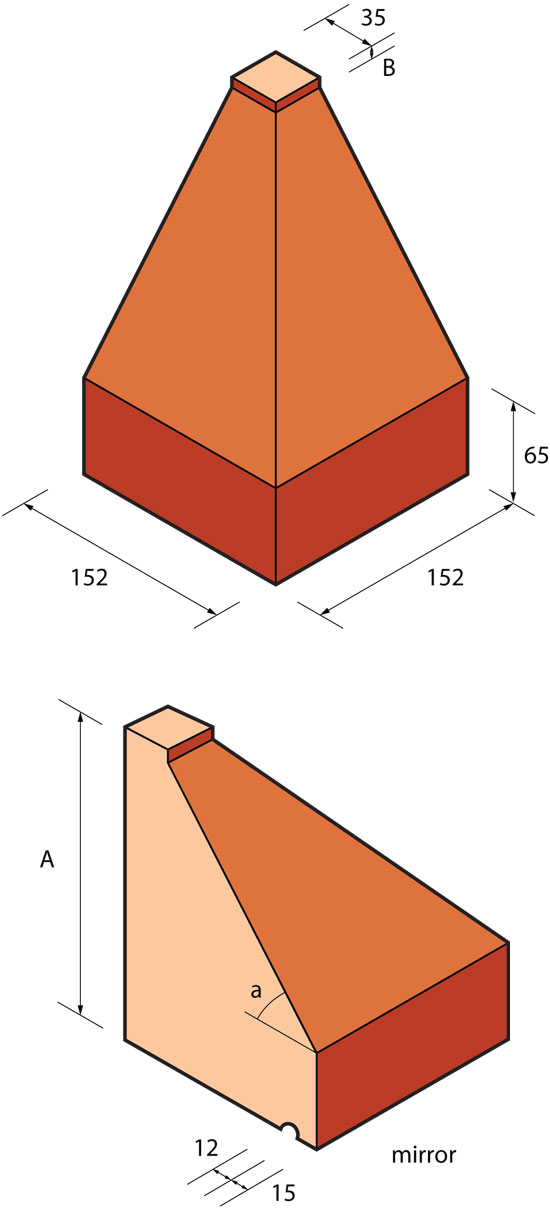

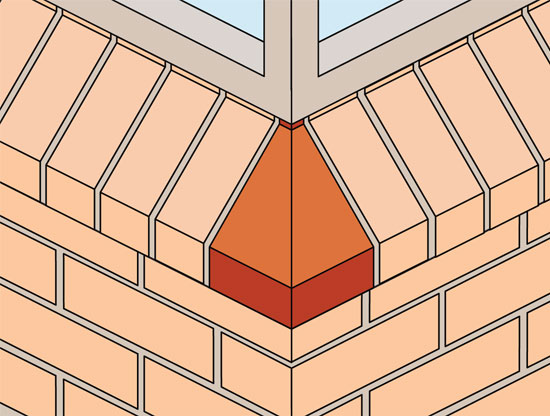

IC.5 OVERHANGING ANGLED SILL EXTERNAL RETURN
| Type No. | A | B | a |
|---|---|---|---|
| I.C.5.1 | 140 | 7.5 | 30° |
| I.C.5.2 | 215 | 10 | 50° |

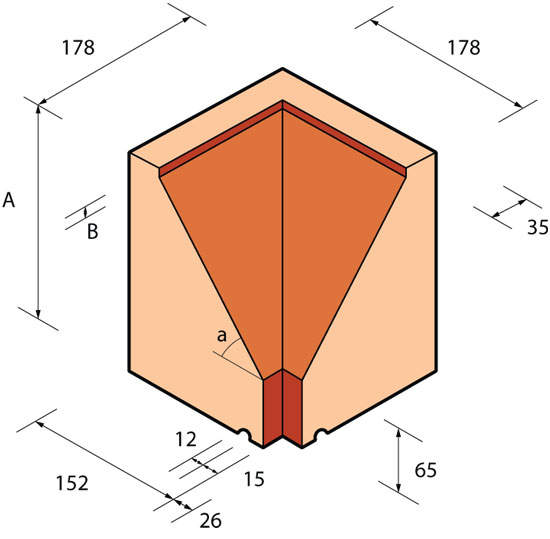

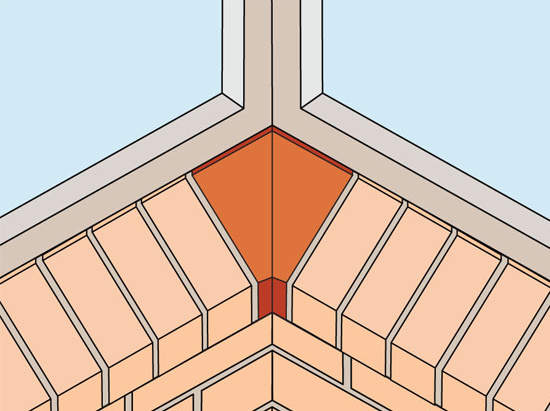

IC.6 OVERHANGING ANGLED SILL INTERNAL RETURN
| Type No. | A | B | a |
|---|---|---|---|
| I.C.6.1 | 140 | 7.5 | 30° |
| I.C.6.2 | 215 | 10 | 50° |

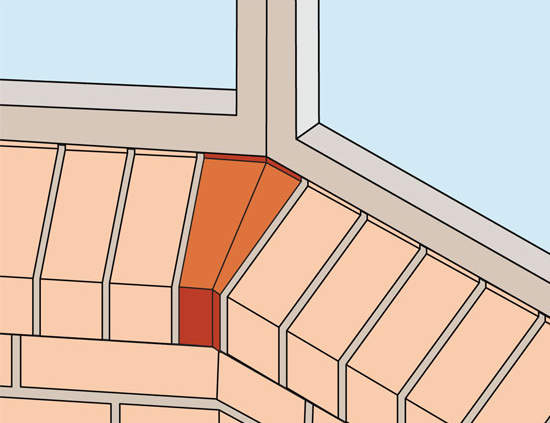

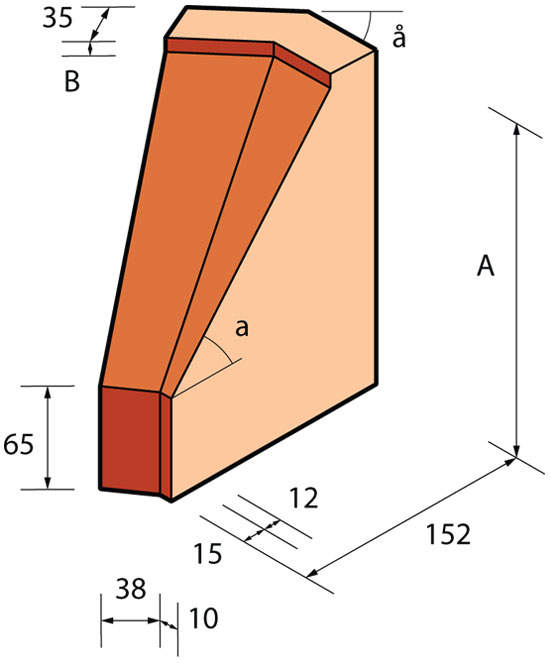

IC.7 OVERHANGING ANGLED SILL INTERNAL ANGLE (LEFT AND RIGHT HAND)
| Type No. | A | B | a | å |
|---|---|---|---|---|
| I.C.7.1 | 140 | 7.5 | 30° | 30° |
| I.C.7.2 | 140 | 7.5 | 30° | 5° |
| I.C.7.3 | 140 | 7.5 | 30° | 60° |
| I.C.7.4 | 215 | 10 | 50° | 30° |
| I.C.7.5 | 215 | 10 | 50° | 45° |
| I.C.7.6 | 215 | 10 | 50° | 60° |

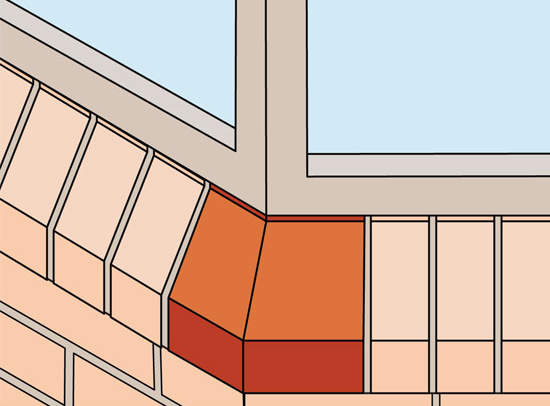

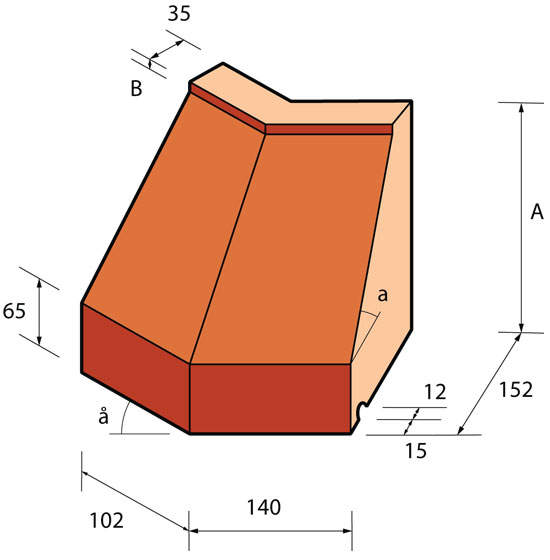

IC.8 OVERHANGING ANGLED SILL EXTERNAL ANGLE (LEFT & RIGHT HAND)
| Type No. | A | B | a | å |
|---|---|---|---|---|
| I.C.8.1 | 140 | 7.5 | 30° | 30° |
| I.C.8.2 | 140 | 7.5 | 30° | 45° |
| I.C.8.3 | 140 | 7.5 | 30° | 60° |
| I.C.8.4 | 215 | 10 | 50° | 30° |
| I.C.8.5 | 215 | 10 | 50° | 45° |
| I.C.8.6 | 215 | 10 | 50° | 60° |
APPENDIX
APPLICATION OF SQUINTS AND ANGLE BRICKS TO EXTERNAL AND INTERNAL ANGLES IN BRICKWORK
A: Squint AN.1.1, AN.1.2, AN.1.3
Maintains half-bond without closer
B: External angles AN.2.1, AN.2.2, AN.2.3
Maintains half-bond with closer
C: External angles AN.2.1, AN.2.2, AN.2.3
Maintains quarter-bond without closer
D: External angles AN.2.4, AN.2.5, AN.2.6
Maintains half-bond without closer
E: Internal angle AN.3.1, AN.3.2, AN.3.3
Maintains half-bond without closer
F: Internal angle AN.3.4, AN.3.5, AN.3.6
Maintains half-bond with closer
G: Internal angle AN.3.7, AN.3.8, AN.3.9
Maintains half-bond without closer
