An example of specially shaped bricks, manufactured from standard bricks, using a cut and bonded method.

An example of specially shaped bricks, This process is carried out using diamond-tipped blades and clean, fresh water. The bonding process takes place using a two-part epoxy resign, specifically developed for this task.

Special Shaped Plinth Bricks

ANGLE AND CANT BRICKS (AN) | PLINTH BRICKS (PL) | BONDING BRICKS (BD) | BRICK SLIPS (SL) | SOLDIER BRICKS (SD) | CAPPING BRICKS (CP) | BULLNOSE BRICKS (BN) | PISTOL BRICKS (NON STANDARD) | NON STANDARD ANGLES |

Special shaped bricks are manufactured from standard bricks, using a cut and bonded method. This process is carried out using diamond tipped blades and clean, fresh water. The bonding process takes place using a two part epoxy resign, specifically developed for this task.

Special shaped bricks can be delivered back to site in days rather than weeks. Ordering non-standard angles? Email us a drawing and we will email back an Isometric diagram for your approval.

PLINTH BRICKS (PL)

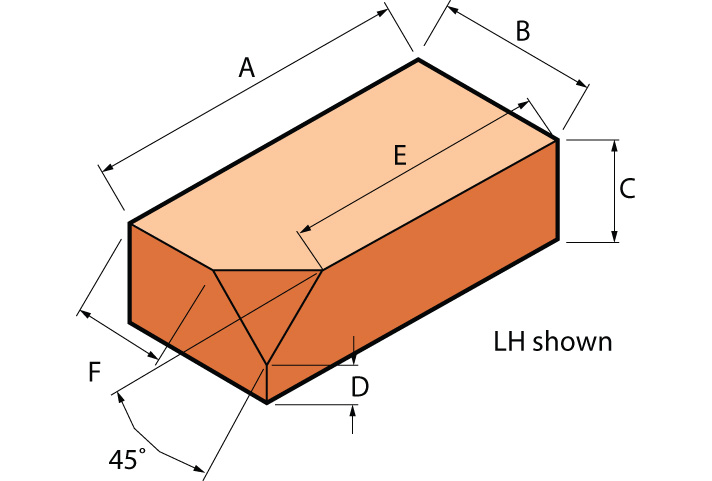

PL.1 PLINTH STOP OR CANT STOP (LEFT OR RIGHT HAND)

Type No.	A	B	C	D	E	F
PL.1.1	215	102	65	9	159	49
PL.1.2	215	102	65	23	173	60

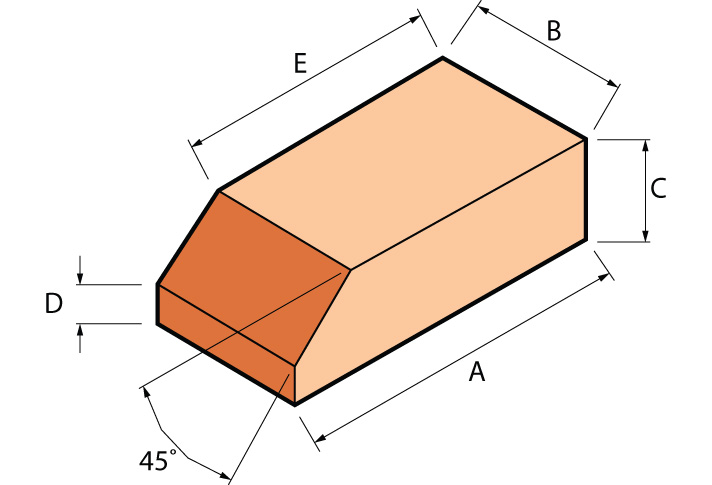

PL.2 PLINTH HEADER

Type No.	A	B	C	D	E
PL.2.1	215	102	65	9	159
PL.2.2	215	102	65	23	173

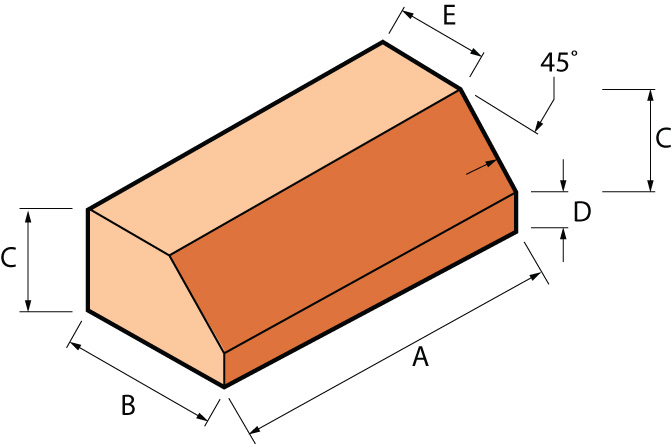

PL.3 PLINTH STRETCHER

Type No.	A	B	C	D	E
PL.3.1	215	102	65	9	46
PL.3.2	215	102	65	23	60

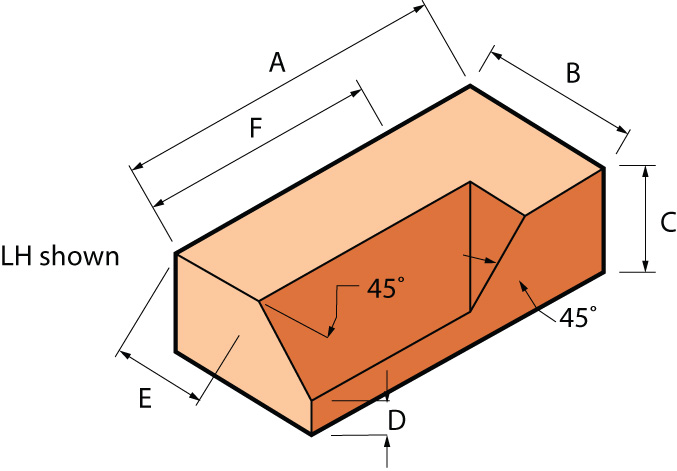

PL.4 PLINTH INTERNAL RETURN (LONG) (LEFT OR RIGHT HAND)

Type No.	A	B	C	D	E	F
PL.4.1	215	102	65	9	46	169
PL.4.2	215	102	65	23	60	155

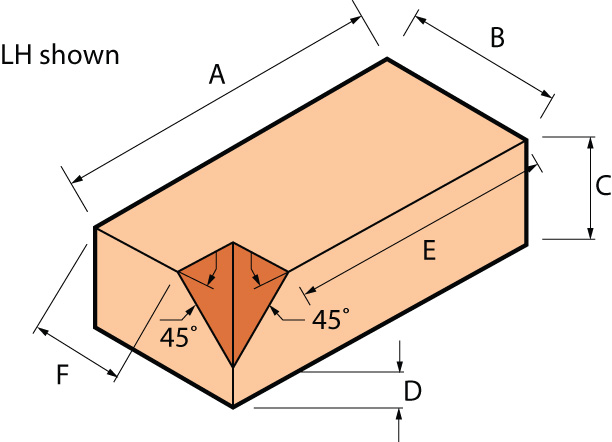

PL.5 PLINTH INTERNAL RETURN (SHORT) (LEFT OR RIGHT HAND)

Type No.	A	B	C	D	E	F
PL.5.1	215	102	65	9	159	46
PL.5.2	215	102	65	23	173	60

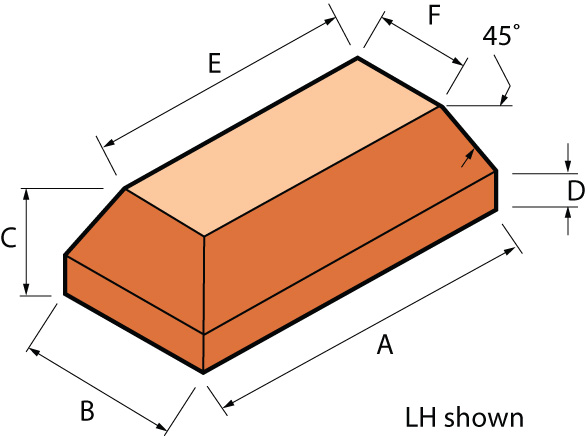

PL.7 PLINTH EXTERNAL RETURN (LEFT OR RIGHT HAND)

Type No.	A	B	C	D	E	F
PL.7.1	215	102	65	9	159	46
PL.7.2	215	102	65	23	173	60

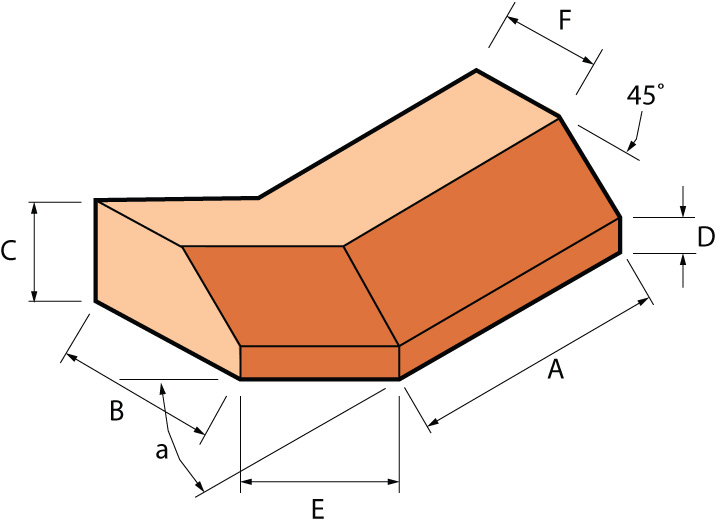

PL.8 PLINTH EXTERNAL ANGLE (LEFT OR RIGHT HAND)

Type No.	A	B	C	D	E	F	a
PL.8.1	159 ¹	102	65	9	102	46	30°
PL.8.2	159 ¹	102	65	23	102	60	30°
PL.8.3	159 ¹	102	65	9	102	60	45°
PL.8.4	159 ¹	102	65	23	102	60	45°
PL.8.5	159 ¹	102	65	9	102	46	60°
PL.8.6	159 ¹	102	65	23	102	60	60°
PL.8.7	215 ¹	102	65	9	102	46	30°
PL.8.8	215 ¹	102	65	23	102	60	30°
PL.8.9	215 ¹	102	65	9	102	46	45°
PL.8.10	215 ¹	102	65	23	102	60	45°
PL.8.11	215 ¹	102	65	9	102	46	60°
PL.8.12	215 ¹	102	65	23	102	60	60°

1: Suitable for quarter bond without cutting. See appendix
2: Suitable for half bond without cutting. See appendix

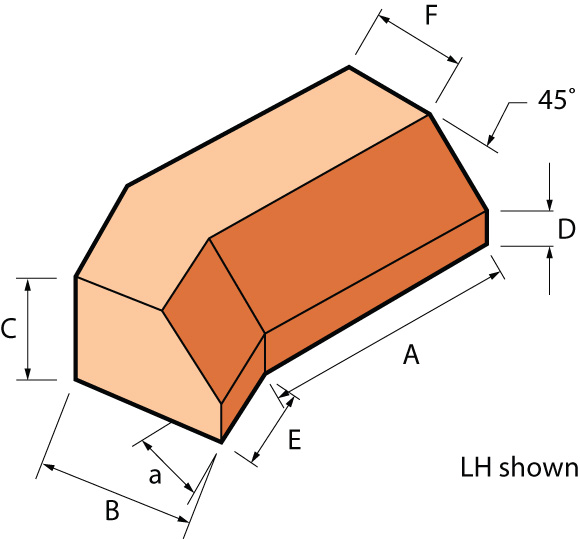

PL.6 PLINTH INTERNAL ANGLE (LEFT OR RIGHT HAND)

Type No.	A	B	C	D	E	F	a
PL.6.1	164 ²	102	65	9	51	46	30°
PL.6.2	164 ²	102	65	23	51	60	30°
PL.6.3	164 ²	102	65	9	51	46	45°
PL.6.4	164 ²	102	65	23	51	60	45°
PL.6.5	164 ²	102	65	9	51	46	60°
PL.6.6	164 ²	102	65	23	51	60	60°
PL.6.7	159 ²	102	65	9	102	46	30°
PL.6.8	159 ²	102	65	23	102	60	30°
PL.6.9	159 ²	102	65	9	102	46	45°
PL.6.10	159 ²	102	65	23	102	60	45°
PL.6.11	159 ²	102	65	9	102	46	60°
PL.6.12	159 ²	102	65	23	102	60	60°
PL.6.13	215 ²	102	65	9	102	46	30°
PL.6.14	215 ²	102	65	23	102	60	30°
PL.6.15	215 ²	102	65	9	102	46	45°
PL.6.16	215 ²	102	65	23	102	60	45°
PL.6.17	215 ²	102	65	9	102	46	60°
PL.6.18	215 ²	102	65	23	102	60	60°

1: Suitable for quarter bond without cutting. See appendix
2: Suitable for half bond without cutting. See appendix

PL.7 PLINTH EXTERNAL RETURN (LEFT OR RIGHT HAND)

Type No.	A	B	C	D	E	F
PL.7.1	215	102	65	9	159	46
PL.7.2	215	102	65	23	173	60

PL.8 PLINTH EXTERNAL ANGLE (LEFT OR RIGHT HAND)

Type No.	A	B	C	D	E	F	a
PL.8.1	159 ¹	102	65	9	102	46	30°
PL.8.2	159 ¹	102	65	23	102	60	30°
PL.8.3	159 ¹	102	65	9	102	60	45°
PL.8.4	159 ¹	102	65	23	102	60	45°
PL.8.5	159 ¹	102	65	9	102	46	60°
PL.8.6	159 ¹	102	65	23	102	60	60°
PL.8.7	215 ¹	102	65	9	102	46	30°
PL.8.8	215 ¹	102	65	23	102	60	30°
PL.8.9	215 ¹	102	65	9	102	46	45°
PL.8.10	215 ¹	102	65	23	102	60	45°
PL.8.11	215 ¹	102	65	9	102	46	60°
PL.8.12	215 ¹	102	65	23	102	60	60°

1: Suitable for quarter bond without cutting. See appendix
2: Suitable for half bond without cutting. See appendix

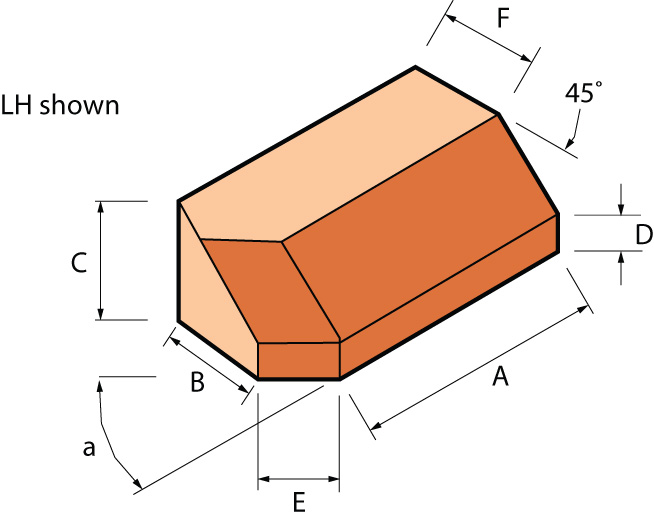

PL.9 PLINTH SQUINT (LEFT OR RIGHT HAND)

Type No.	A	B	C	D	E	F	a
PL.9.1	164	102	65	9	51	46	30°
PL.9.2	164	102	65	23	51	60	30°
PL.9.3	164	102	65	9	51	46	45°
PL.9.4	164	102	65	23	51	60	45°
PL.9.5	164	102	65	9	51	46	60°
PL.8.6	164	102	65	23	51	60	60°

APPLICATION OF BRITISH STANDARD PLINTHS

PL.3.1 - 9mm PLINTH

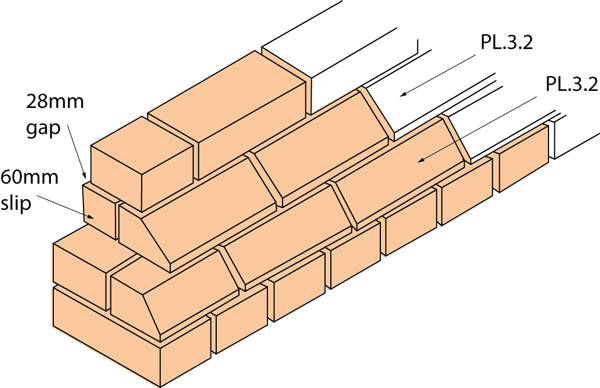

PL.3.2 - 22mm PLINTH

APPENDIX

APPLICATION OF SQUINTS AND ANGLE BRICKS TO EXTERNAL AND INTERNAL ANGLES IN BRICKWORK

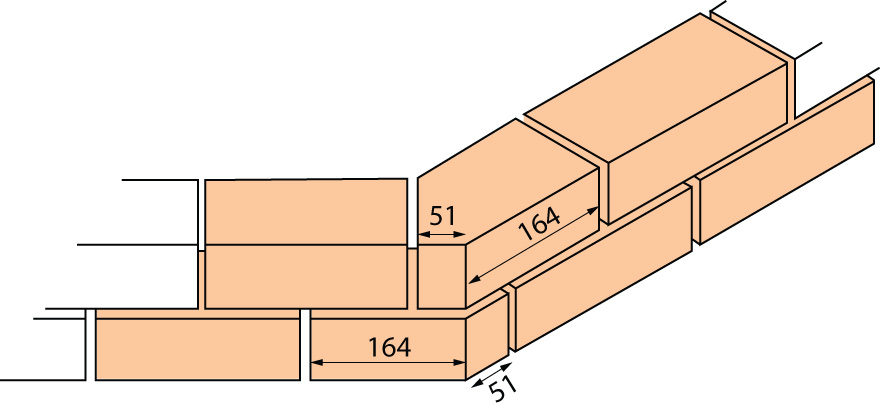

A: Squint AN.1.1, AN.1.2, AN.1.3
Maintains half-bond without closer

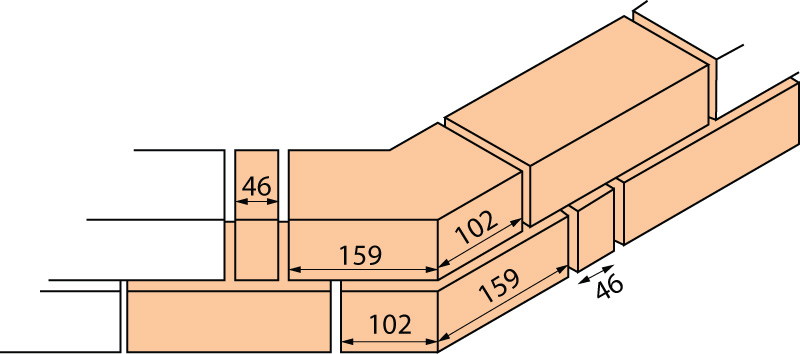

B: External angles AN.2.1, AN.2.2, AN.2.3
Maintains half-bond with closer

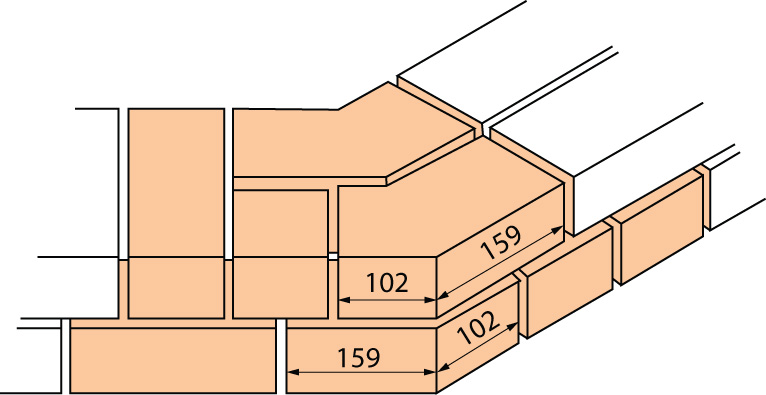

C: External angles AN.2.1, AN.2.2, AN.2.3
Maintains quarter-bond without closer

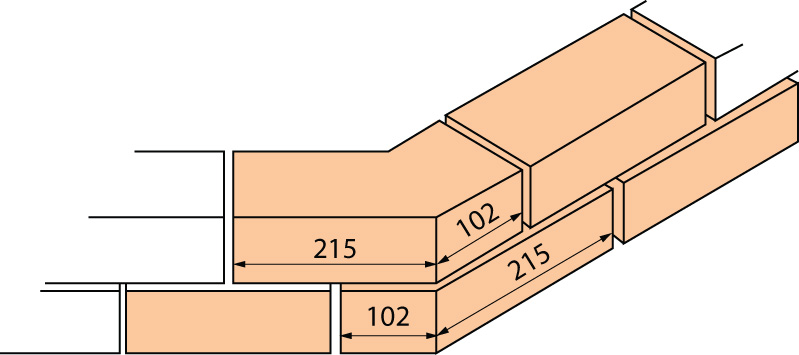

D: External angles AN.2.4, AN.2.5, AN.2.6
Maintains half-bond without closer

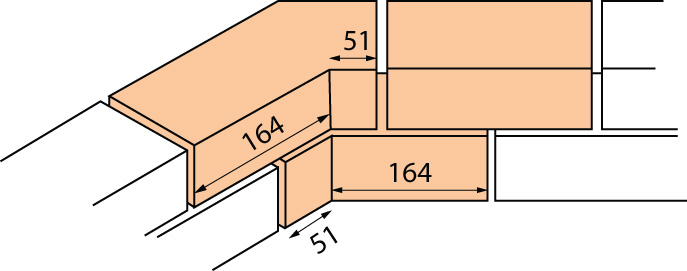

E: Internal angle AN.3.1, AN.3.2, AN.3.3
Maintains half-bond without closer

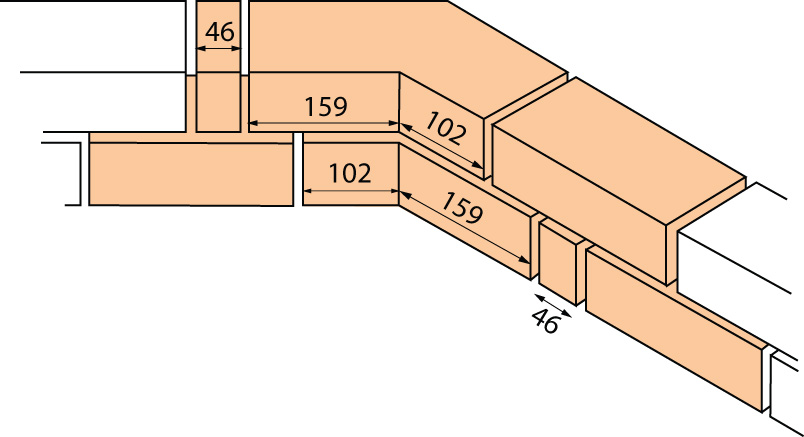

F: Internal angle AN.3.4, AN.3.5, AN.3.6
Maintains half-bond with closer

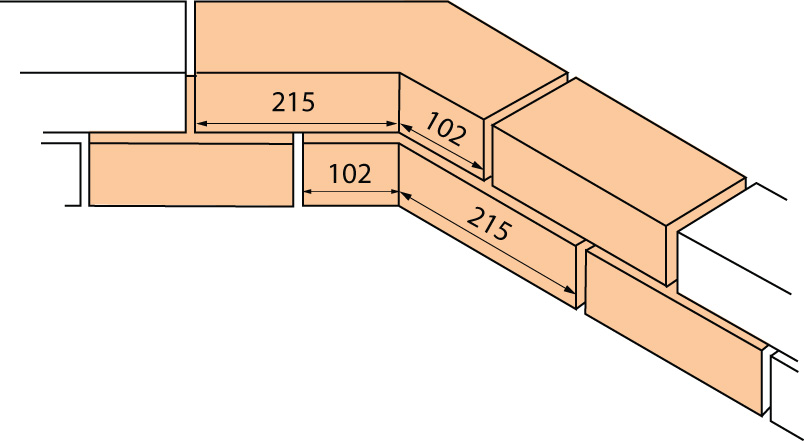

G: Internal angle AN.3.7, AN.3.8, AN.3.9
Maintains half-bond without closer

H: Internal angle AN.3.4, AN.3.5, AN.3.6
Maintains quarter-bond
