Special Shaped Bonding Bricks
Special shaped bricks are manufactured from standard bricks, using a cut and bonded method. This process is carried out using diamond tipped blades and clean, fresh water. The bonding process takes place using a two part epoxy resign, specifically developed for this task.
Special shaped bricks can be delivered back to site in days rather than weeks. Ordering non-standard angles? Email us a drawing and we will email back an Isometric diagram for your approval.
BONDING BRICKS (BD)
BD.1.1 HALF BAT (SNAP HEADER)
| Type No. | A | B | C |
|---|---|---|---|
| BD.1.1 | 102 | 102 | 65 |

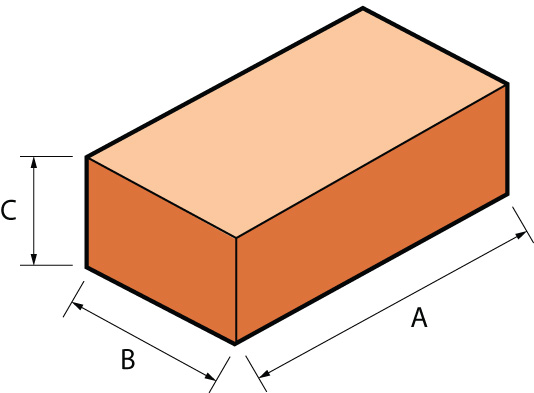

BD.1.2 THREE QUARTER BAT
| Type No. | A | B | C |
|---|---|---|---|
| BD.1.2 | 159 | 102 | 65 |

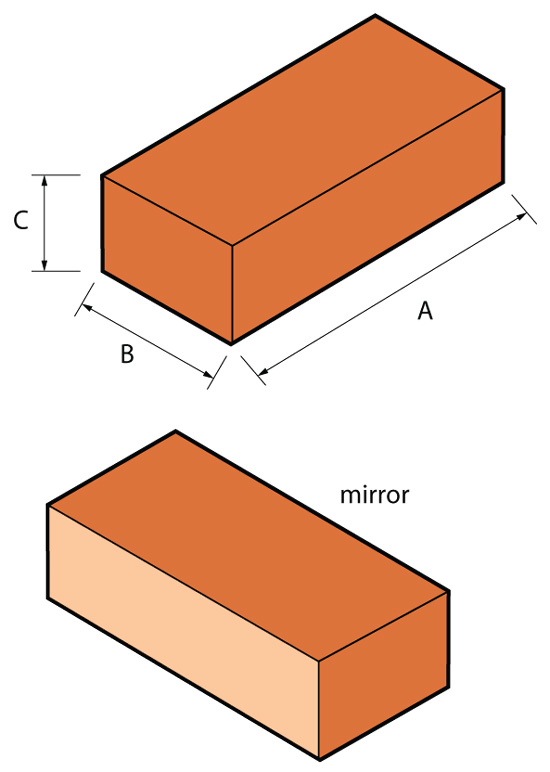

BD.1.3 STANDARD BRICK FACED ON BED SURFACE
| Type No. | A | B | C |
|---|---|---|---|
| BD.1.3 | 215 | 102 | 65 |

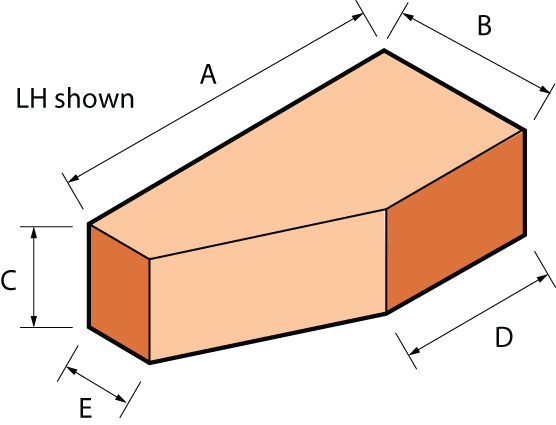

BD.2 KING CLOSER (LEFT OR RIGHT HAND)
| Type No. | A | B | C | D | E |
|---|---|---|---|---|---|
| BD.2 | 215 | 102 | 65 | 102 | 46 |

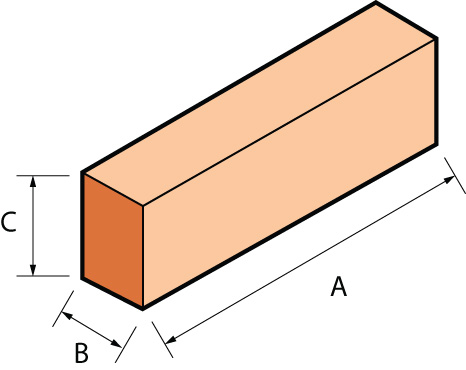

BD.3 QUEEN CLOSER
| Type No. | A | B | C |
|---|---|---|---|
| BD.3 | 215 | 46 | 65 |

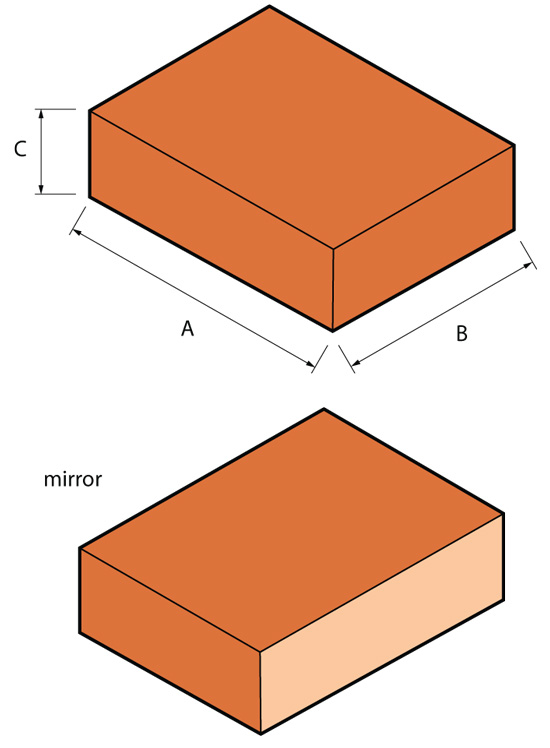

BD.4 215MM STOP END
| Type No. | A | B | C |
|---|---|---|---|
| BD.4.1 | 215 | 159 | 102 |
| BD.4.2 | 215 | 159 | 65 |
| BD.4.3 | 215 | 215 | 102 |
| BD.4.4 | 215 | 215 | 65 |
