An example of specially shaped bricks, manufactured from standard bricks, using a cut and bonded method.
An example of specially shaped bricks, This process is carried out using diamond-tipped blades and clean, fresh water. The bonding process takes place using a two-part epoxy resign, specifically developed for this task.
An example of specially shaped bricks, manufactured from standard bricks, using a cut and bonded method.

Special Shaped Bricks

ANGLE AND CANT BRICKS (AN) | PLINTH BRICKS (PL) | BONDING BRICKS (BD) | BRICK SLIPS (SL) | SOLDIER BRICKS (SD) | CAPPING BRICKS (CP) | BULLNOSE BRICKS (BN) | PISTOL BRICKS (NON STANDARD) | NON STANDARD ANGLES |

Special shaped bricks are manufactured from standard bricks, using a cut and bonded method. This process is carried out using diamond tipped blades and clean, fresh water. The bonding process takes place using a two part epoxy resign, specifically developed for this task.

Special shaped bricks can be delivered back to site in days rather than weeks. Ordering non-standard angles? Email us a drawing and we will email back an Isometric diagram for your approval.

ANGLE AND CANT BRICKS (AN)

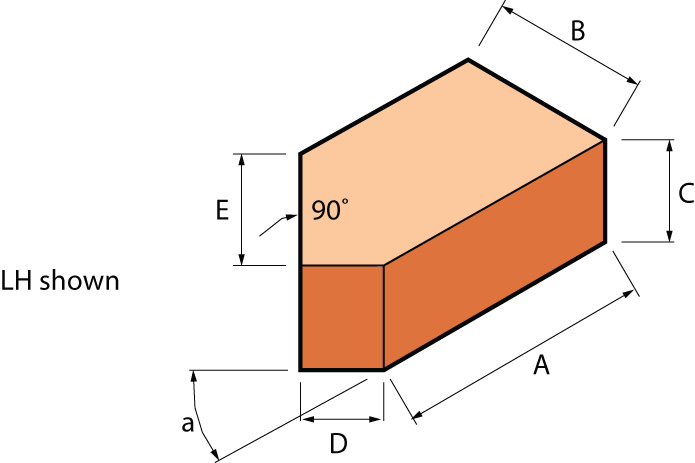

AN.1 SQUINT (LEFT OR RIGHT HAND)

Special Shape - AN.1 SQUINT (LEFT OR RIGHT HAND)
Type No.ABCDEa
AN.1.116410265518930°
AN.1.216410265519445°
AN.1.3164102655111760°

Suitable for half bond without cutting. See appendix

AN.2 EXTERNAL ANGLE (LEFT OR RIGHT HAND)

Special Shape - AN.1 SQUINT (LEFT OR RIGHT HAND)
Type No.ABCDa
AN.2.1159 11026510230°
AN.2.2159 11026510245°
AN.2.3159 11026510260°
AN.2.4215 21026510230°
AN.2.5215 21026510245°
AN.2.6215 21026510260°

1: Suitable for quarter bond without cutting. See appendix
2: Suitable for half bond without cutting. See appendix

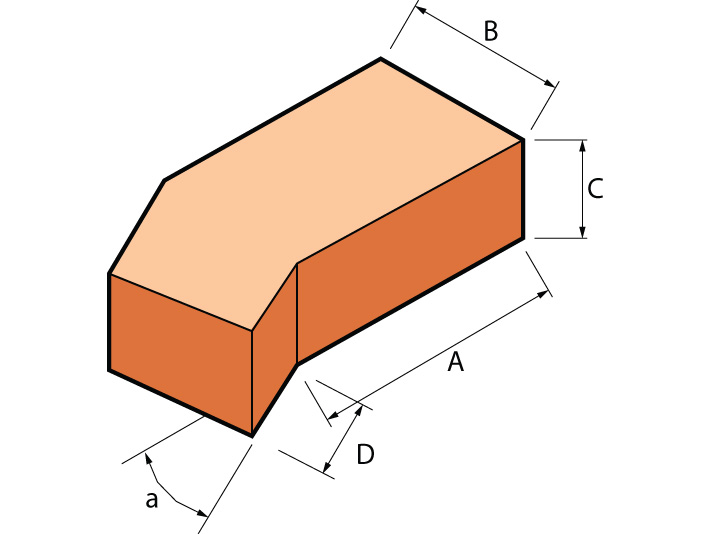

AN.3 INTERNAL ANGLE (DOG LEG) (LEFT OR RIGHT HAND)

Special Shape - AN.3 INTERNAL ANGLE (DOG LEG) (LEFT OR RIGHT HAND)
Type No.ABCDa
AN.3.1164 2102655130°
AN.3.2164 2102655145°
AN.3.3164 2102655160°
AN.3.4159 11026510230°
AN.3.5159 11026510245°
AN.3.6159 11026510260°
AN.3.7215 21026510230°
AN.3.8215 21026510245°
AN.3.9215 21026510260°

1: Suitable for quarter bond without cutting. See appendix
2: Suitable for half bond without cutting. See appendix

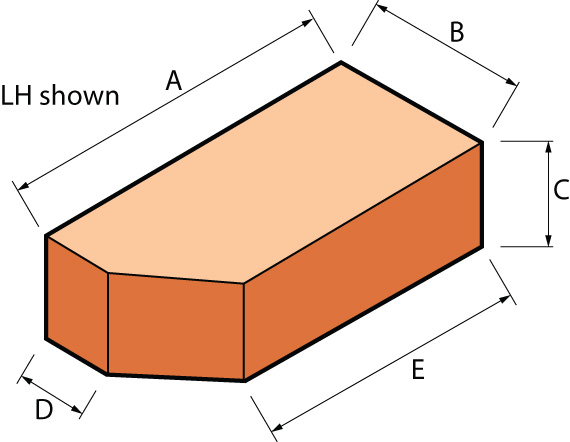

AN.5 SINGLE CANT (LEFT OR RIGHT HAND)

Special Shaped Bricks - AN.5 SINGLE CANT (LEFT OR RIGHT HAND)
Type No.ABCDE
AN.5.12151026546159
AN.5.22151026560173

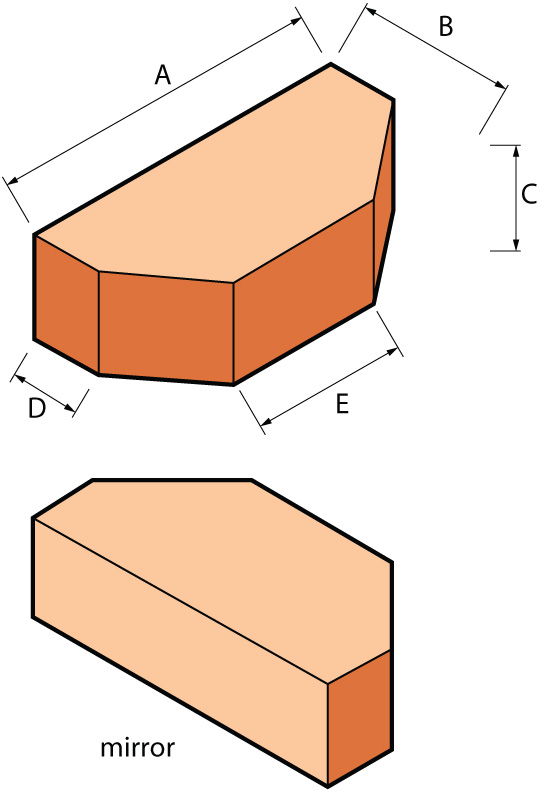

AN.6 DOUBLE CANT

Special Shaped Bricks - AN.6 DOUBLE CANT
Type No.ABCDE
AN.6.12151026546103
AN.6.22151026560131

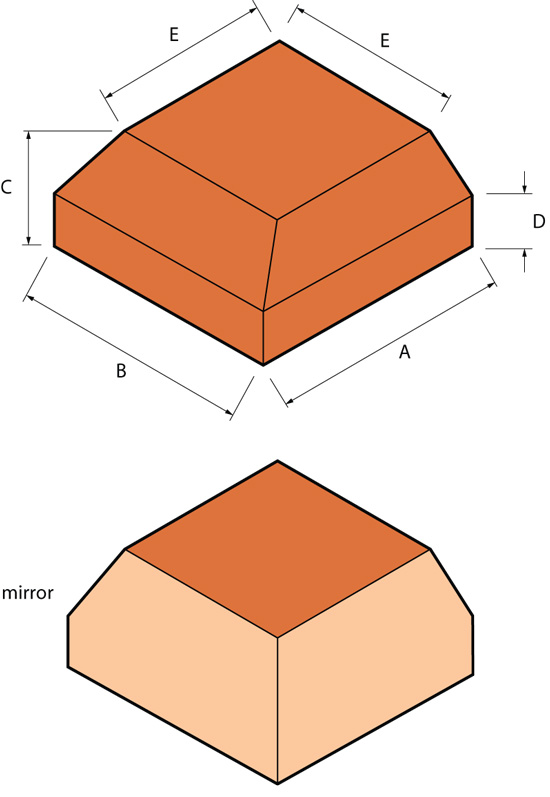

AN.7 SINGLE CANT EXTERNAL RETURN

Special Shaped Bricks - AN.7 SINGLE CANT EXTERNAL RETURN
Type No.ABCDE
AN.7.121521510246159
AN.7.221521510260173

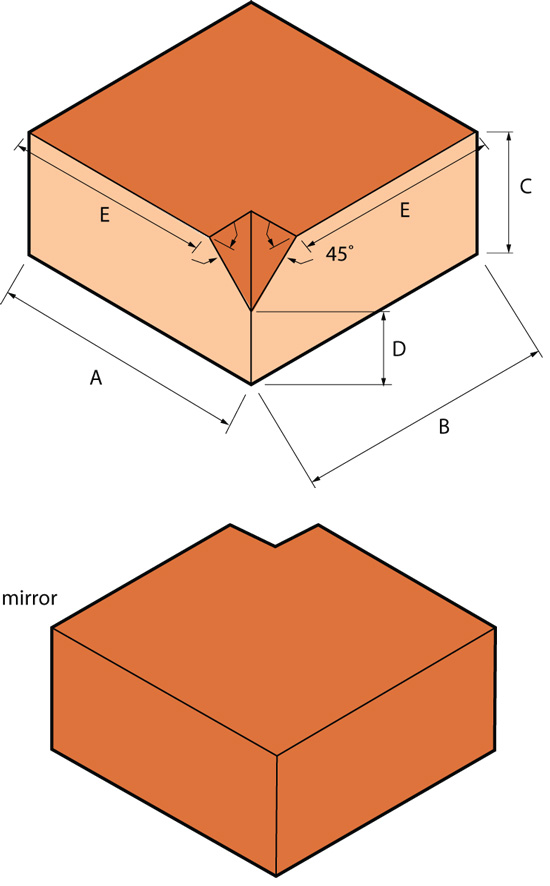

AN.8 SINGLE CANT INTERNAL RETURN WITH INTERNAL MITRE (SQUARE EXTERNAL CORNER ON BED)

Special Shaped Bricks - AN.8 SINGLE CANT INTERNAL RETURN WITH INTERNAL MITRE (SQUARE EXTERNAL CORNER ON BED)
Type No.ABCDE
AN.8.121521510246159
AN.8.221521510260173

AN.10 SINGLE CANT EXTERNAL ANGLE

Special Shaped Bricks - AN.10 SINGLE CANT EXTERNAL ANGLE
Type No.ABCDEFa
AN.10.12151021594615910130°
AN.10.22151021596017310130°
AN.10.3215102159461597045°
AN.10.4215102159601737045°
AN.10.5215102159461593560°
AN.10.6215102159601733560°

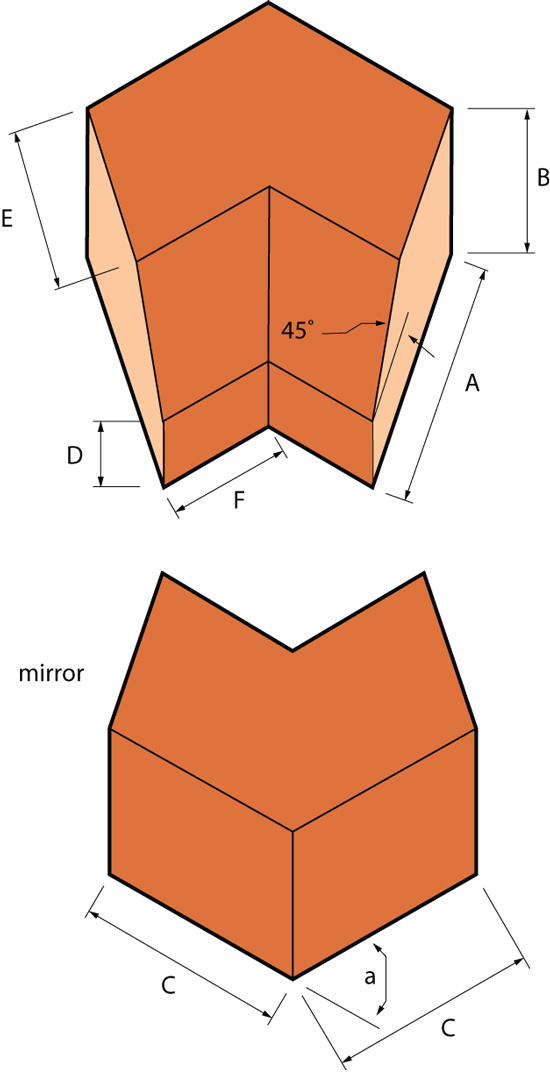

AN.11 SINGLE CANT INTERNAL ANGLE

Special Shaped Bricks - AN.11 SINGLE CANT INTERNAL ANGLE
Type No.ABCDEFa
AN.11.12151021594615910130°
AN.11.22151021596017310130°
AN.11.3215102159461597045°
AN.11.4215102159601737045°
AN.11.5215102159461593560°
AN.11.6215102159601733560°

AN.12 DOUBLE CANT STOP END (SQUARE CORNERS ON BED)

Special Shaped Bricks - AN.12 DOUBLE CANT STOP END (SQUARE CORNERS ON BED)
Type No.ABCDEF
AN.12.121521510246103159
AN.12.221521510260131173

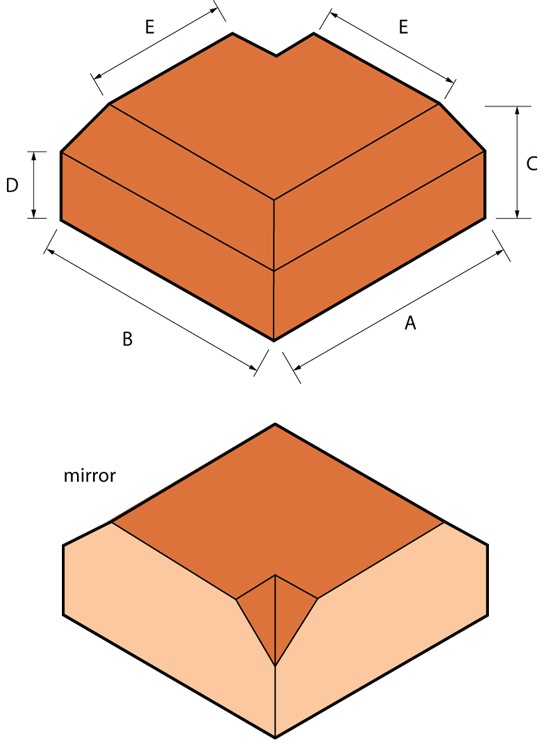

AN.14 DOUBLE CANT EXTERNAL RETURN WITH INTERNAL MITRE (SQUARE CORNERS ON BED)

Special Shaped Bricks - AN.14 DOUBLE CANT EXTERNAL RETURN WITH INTERNAL MITRE (SQUARE CORNERS ON BED)
Type No.ABCDE
AN.14.121521510246103
AN.14.221521510260131

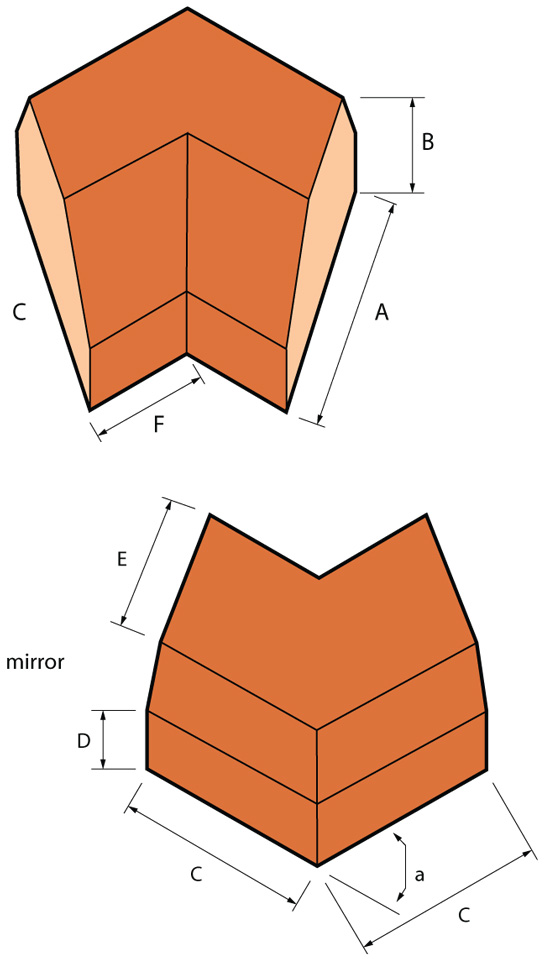

AN.18 DOUBLE CANT ANGLE

Special Shaped Bricks - 18 DOUBLE CANT ANGLE
Type No.ABCDEFa
AN.18.12151021594610310130°
AN.18.22151021596013110130°
AN.18.3215102159461037045°
AN.18.4215102159601317045°
AN.18.5215102159461033560°
AN.18.6215102159601313560°

APPENDIX

APPLICATION OF SQUINTS AND ANGLE BRICKS TO EXTERNAL AND INTERNAL ANGLES IN BRICKWORK

Special Shaped Bricks - A: Squint AN.1.1, AN.1.2, AN.1.3 Maintains half-bond without closer

A: Squint AN.1.1, AN.1.2, AN.1.3
Maintains half-bond without closer

Special Shaped Bricks - B: External angles AN.2.1, AN.2.2, AN.2.3 Maintains half-bond with closer

B: External angles AN.2.1, AN.2.2, AN.2.3
Maintains half-bond with closer

Special Shaped Bricks - C: External angles AN.2.1, AN.2.2, AN.2.3 Maintains quarter-bond without closer

C: External angles AN.2.1, AN.2.2, AN.2.3
Maintains quarter-bond without closer

Special Shaped Bricks - D: External angles AN.2.4, AN.2.5, AN.2.6 Maintains half-bond without closer

D: External angles AN.2.4, AN.2.5, AN.2.6
Maintains half-bond without closer

Special Shaped Bricks - E: Internal angle AN.3.1, AN.3.2, AN.3.3 Maintains half-bond without closer

E: Internal angle AN.3.1, AN.3.2, AN.3.3
Maintains half-bond without closer

Special Shaped Bricks - F: Internal angle AN.3.4, AN.3.5, AN.3.6 Maintains half-bond with closer

F: Internal angle AN.3.4, AN.3.5, AN.3.6
Maintains half-bond with closer

Special Shaped Bricks - G: Internal angle AN.3.7, AN.3.8, AN.3.9 Maintains half-bond without closer

G: Internal angle AN.3.7, AN.3.8, AN.3.9
Maintains half-bond without closer

Special Shaped Bricks - H: Internal angle AN.3.4, AN.3.5, AN.3.6 Maintains quarter-bond

H: Internal angle AN.3.4, AN.3.5, AN.3.6
Maintains quarter-bond
